Parent Layer: Census Tract

Name: NFIP_RL_SRL_Census_Tract_2025

Display Field: County_FIPS

Type: Feature Layer

Geometry Type: esriGeometryPolygon

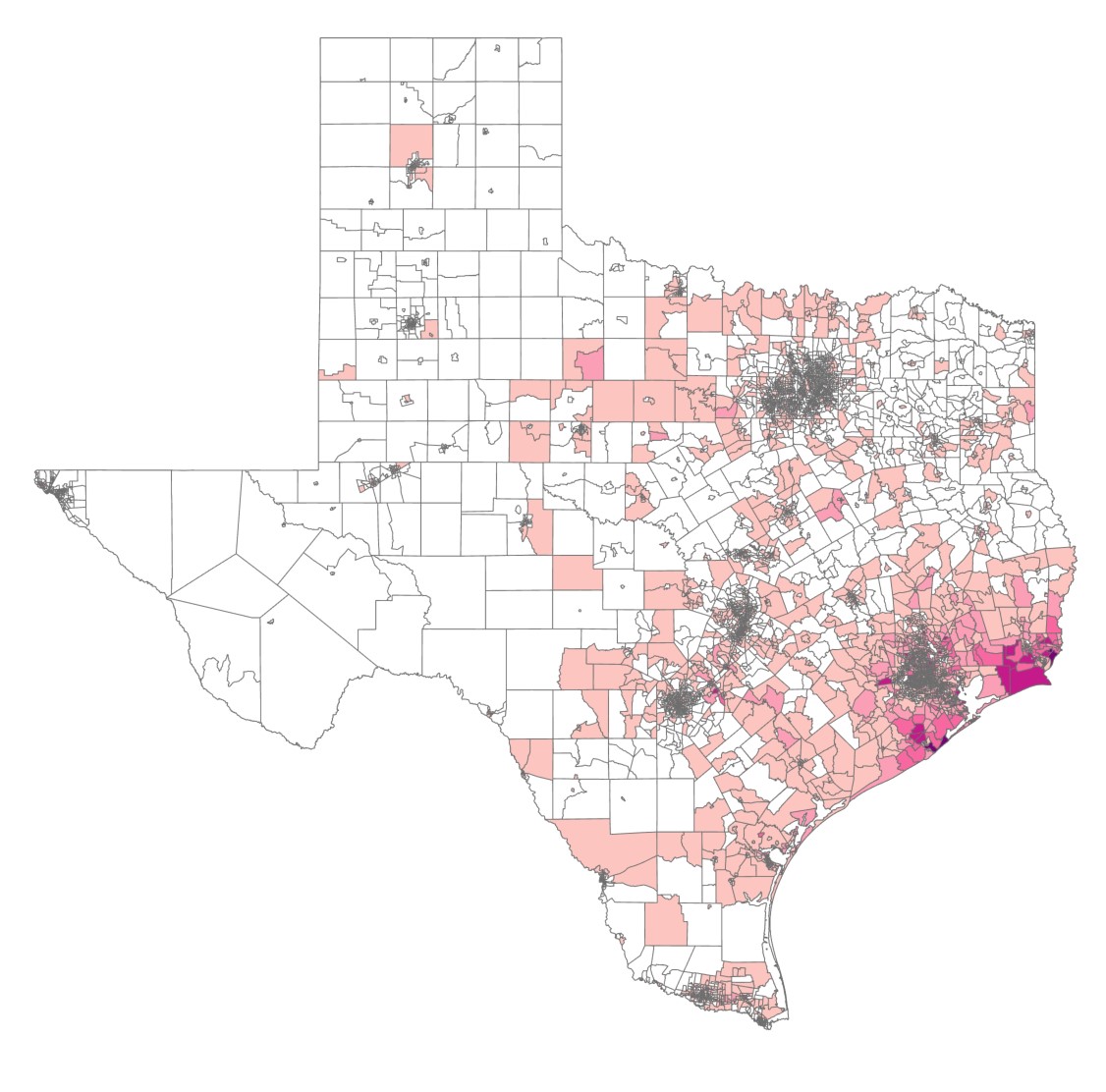

Description: This feature class shows repetitive loss and severe repetitive loss structures in Texas that meet the National Flood Insurance Program definition aggregated by census tract. Data obtained from FEMA in April 2025. Census Tract boundaries and 2020 Population obtained from the ACS Population Variables REST Service.A NFIP Repetitive Loss Structure is a structure that meets the NFIP definition of repetitive loss, which is a structure covered by a contract for flood insurance under the National Flood Insurance Program (NFIP) that has incurred flood-related damage on two occasions during a 10-year period, each resulting in at least a $1000 claim payment.A NFIP Severe Repetitive Loss Structure is a structure that meets the NFIP definition of severe repetitive loss, which is a structure covered by a contract for flood insurance under the National Flood Insurance Program (NFIP) that has incurred flood-related damage — for which 4 or more separate claims payments have been made under flood insurance coverage under this title, with the amount of each such claim exceeding $5,000, and with the cumulative amount of such claims payments exceeding $20,000; or for which at least 2 separate claims payments have been made under such coverage, with the cumulative amount of such claims exceeding the value of the insured structure. In addition, the structure must be residential and two of the losses must have occurred within 10 years of each other.Occupancy Type was aggregated by each city only for NFIP RL + SRL combined. The method utilized was the "Old Methodology" provided by FEMA which only included 5 types: 2-4 FAMILY, BUSI-NONRES, OTHER RESID, OTHR-NONRES, SINGLE FMLY. Claims using the new methodology for Occupancy were consolidated into the original 5 types.To request additional NFIP data from FEMA please visit https://www.twdb.texas.gov/financial/programs/FMA/doc/TWDB-RequestforNFIP-PII.docx.

Service Item Id: 28f8698db99149b99f3d105d33a30dbf

Copyright Text: FEMA, US Census Bureau, TxDOT, TWDB

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.18717400982E7
YMin: 2978953.8242999986
XMax: -1.04092961829E7
YMax: 4369738.848700002
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Class Breaks Renderer:
Field: NFIP_RL_Count
Min. Value: 0.0
ClassBreakInfos:
• Class Maximum Value: 0
  Label: 0
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 255, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 11
  Label: 1 - 11
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [252, 197, 192, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 40
  Label: 12 - 40
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [250, 159, 181, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 88
  Label: 41 - 88
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [247, 104, 161, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 186
  Label: 89 - 186
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [197, 27, 138, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 344
  Label: 187 - 344
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [122, 1, 119, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• County_FIPS ( type: esriFieldTypeString, alias: County FIPS, length: 5 )
• County ( type: esriFieldTypeString, alias: County, length: 255 )
• Census_Tract_FIPS ( type: esriFieldTypeString, alias: Census Tract FIPS, length: 30 )
• Population_2020 ( type: esriFieldTypeInteger, alias: Population 2020 )
• NFIP_RL_Count ( type: esriFieldTypeInteger, alias: NFIP RL Structures Count )
• NFIP_RL_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL Total Losses )
• NFIP_RL_Total_Paid ( type: esriFieldTypeDouble, alias: NFIP RL Total Paid )
• NFIP_RL_Unmit_Count ( type: esriFieldTypeInteger, alias: NFIP RL Unmit Structures Count )
• NFIP_RL_Unmit_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL Unmit Total Losses )
• NFIP_RL_Unmit_Total_Paid ( type: esriFieldTypeDouble, alias: NFIP RL Unmit Total Paid )
• NFIP_SRL_Count ( type: esriFieldTypeInteger, alias: NFIP SRL Structures Count )
• NFIP_SRL_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP SRL Total Losses )
• NFIP_SRL_Total_Paid ( type: esriFieldTypeDouble, alias: NFIP SRL Total Paid )
• NFIP_SRL_Unmit_Count ( type: esriFieldTypeInteger, alias: NFIP SRL Unmit Structures Count )
• NFIP_SRL_Unmit_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP SRL Unmit Total Losses )
• NFIP_SRL_Unmit_Total_Paid ( type: esriFieldTypeDouble, alias: NFIP SRL Unmit Total Paid )
• NFIP_RL_SRL_Sing_Count ( type: esriFieldTypeInteger, alias: NFIP RL SRL Single Family Structures Count )
• NFIP_RL_SRL_Sing_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL SRL Single Family Total Losses )
• NFIP_RL_SRL_2_4_Count ( type: esriFieldTypeInteger, alias: NFIP RL SRL 2-4 Family Structures Count )
• NFIP_RL_SRL_2_4_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL SRL 2-4 Family Total Losses )
• NFIP_RL_SRL_Othr_Count ( type: esriFieldTypeInteger, alias: NFIP RL SRL Other Residential Structures Count )
• NFIP_RL_SRL_Othr_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL SRL Other Residential Total Losses )
• NFIP_RL_SRL_Busi_Count ( type: esriFieldTypeInteger, alias: NFIP RL SRL Business Structures Count )
• NFIP_RL_SRL_Busi_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL SRL Business Total Losses )
• NFIP_RL_SRL_NonR_Count ( type: esriFieldTypeInteger, alias: NFIP RL SRL Other Non-Residential Structures Count )
• NFIP_RL_SRL_NonR_Total_Losses ( type: esriFieldTypeDouble, alias: NFIP RL SRL Other Non-Residential Total Losses )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
