Name: BRACS_PVA_ProjectBoundary_Simple

Display Field: AQ_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

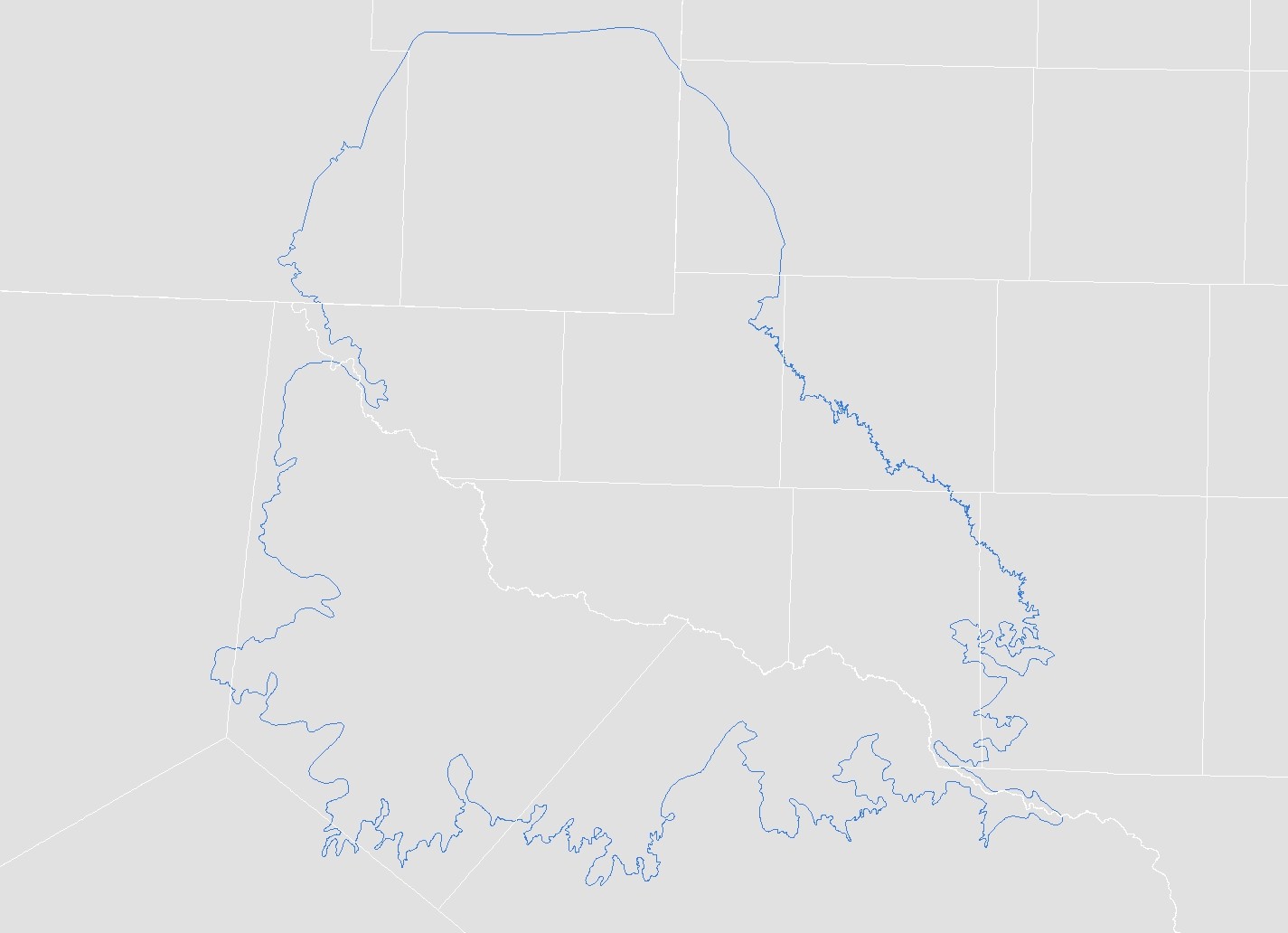

Description: Pecos Valley Aquifer Project Boundary.This dataset is a modification to the TWDB Pecos Valley Aquifer Major Aquifer Map boundary. This was developed by comparing the existing boundary with the digital Texas geologic atlas map and existing and new well control. The purpose of this map was to define the project extent for GIS analysis of project data. The boundary includes "holes" consisting of formation outcrops, such as the Dockum Group and Cretaceous Undivided, where the Pecos Valley Alluvium is not present. These outcrop boundaries were extracted from the digital geologic atlas.This dataset was prepared to meet a specific purpose as described in the following report, which is available on the TWDB website:Meyer, J.E., Wise, M.R., and Kalaswad, S., 2011, Pecos Valley Aquifer, West Texas: Structure and Brackish Groundwater: Texas Water Development Board, report in preparation.The data used to prepare this dataset is also available in the Brackish Resources Aquifer Characterization System (BRACS) MS Access Database, data dictionary, and raw data files (digital geophysical well logs and water well information).

Service Item Id: 81ebd413281349438fff0f7d0dbde7cb

Copyright Text: Texas Water Development Board (www.twdb.state.tx.us), Water Science and Conservation, Groundwater Division, Brackish Resources Aquifer Characterization System Program

Default Visibility: true

Max Result Window: N/A

Max Record Count: 2000

Standard Max Record Count No Geometry: 32000

Max Record Count Factor: 1

Standard MaxRecord Count: 4000

Tile Max Record Count: 4000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1988470.353116072
YMin: 3171914.5187959373
XMax: 2622121.9768805066
YMax: 3810280.9655429027
Spatial Reference: PROJCS["NAD_1983_Lambert_Conformal_Conic",GEOGCS["GCS_North_American_1983",DATUM["D_North_American_1983",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Lambert_Conformal_Conic"],PARAMETER["False_Easting",3280839.89501312],PARAMETER["False_Northing",3280839.89501312],PARAMETER["Central_Meridian",-100.0],PARAMETER["Standard_Parallel_1",27.4166666666667],PARAMETER["Standard_Parallel_2",34.9166666666667],PARAMETER["Latitude_Of_Origin",31.1666666666667],UNIT["Foot",0.3048]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 77, 168, 255]
Width: 4
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports Result Pagination Token: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Cache Hint: false
Supports Query With Current User: true
Supports Query With Result Type: true

HasZ: false

HasM: false

Has Attachments: false

Has Last Edit Time: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: N/A

Fields:

• OBJECTID ( nullable: false, alias: OBJECTID, type: esriFieldTypeOID )
• GISDATAOWNER.BRACS_PVA_ProjectBoundary_Simple.AREA ( nullable: true, alias: GISDATAOWNER.BRACS_PVA_ProjectBoundary_Simple.AREA, type: esriFieldTypeDouble )
• PERIMETER ( nullable: true, alias: PERIMETER, type: esriFieldTypeDouble )
• AQUIFER ( nullable: true, alias: AQUIFER, type: esriFieldTypeSmallInteger )
• AQ_NAME ( nullable: true, length: 30, alias: AQ_NAME, type: esriFieldTypeString )
• Shape ( nullable: true, alias: Shape, type: esriFieldTypeGeometry )
• Shape.STArea() ( nullable: true, alias: Shape.STArea(), type: esriFieldTypeDouble )
• Shape.STLength() ( nullable: true, alias: Shape.STLength(), type: esriFieldTypeDouble )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
